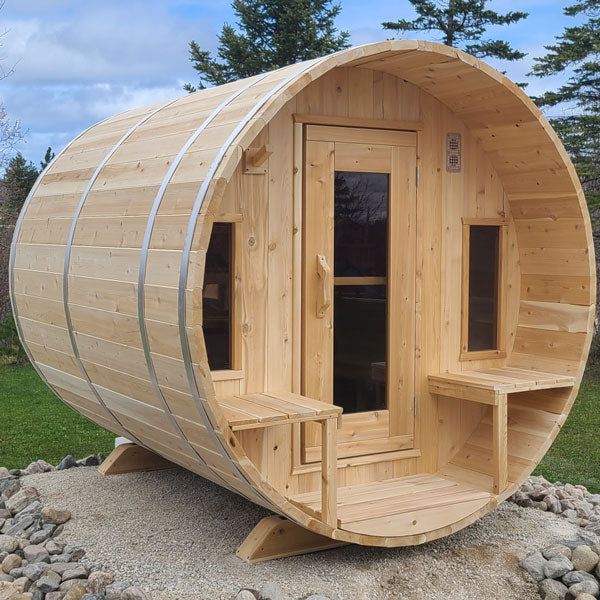

Canadian Timber Tranquility Barrel Sauna | Dundalk Leisurecraft 6-Person

Bring authentic Nordic thermal therapy to your outdoor living space with the Canadian Timber Tranquility Barrel Sauna by Dundalk Leisurecraft. Handcrafted in Canada from sustainable Eastern White Cedar, the Tranquility features an extended cylindrical barrel design engineered to maximize interior comfort, bench space, and continuous convective airflow. Rising heat naturally circulates along the curved stave walls rather than pooling at the ceiling, ensuring faster heat-up times and an even temperature from bench to floor. Generously sized to seat up to 6 adults comfortably, it creates an expansive backyard sanctuary for family hydrotherapy, daily stress relief, cardiovascular recovery, and social relaxation.

The Tranquility is precision-milled from Grade-A Eastern White Cedar, celebrated for its tight, refined knots, lighter wood grain, and natural aromatic oils that resist moisture, insects, rot, and severe freeze-thaw weather. Every barrel body uses full-length solid single-stave bevels that lock tight without tenon joints along their length, secured with heavy-duty T6061 rust-resistant marine aluminum compression bands. Outfitted with deep 20-inch wide cedar benches, 5 mm bronze tempered safety glass, and versatile dual heating capability (electric or wood-fired), the Tranquility provides an authentic Canadian-made wellness retreat built for decades of all-season outdoor use.

• Extended 6-Person Capacity: Sized with a spacious 94.75" interior depth and 297 cu. ft. room volume, offering ample room for up to 6 bathers to sit or recline.

• Convective Thermal Flow: Cylindrical barrel architecture glides heat and steam smoothly along curved walls, cutting warm-up times and eliminating cold drafts.

• Sustainably Harvested Eastern White Cedar: Sourced exclusively from certified sustainable lumber mills in Ontario and British Columbia, celebrating authentic Canadian craftsmanship.

• Solid Single-Stave Bevel Construction: Continuous full-length staves lock together seamlessly without weak tenon joints along the body, maximizing structural strength and thermal insulation.

• T6061 Marine Aluminum Compression Bands: Built with Canadian-made, rust-proof marine-grade aluminum bands engineered to accommodate natural cedar movement throughout shifting seasons.

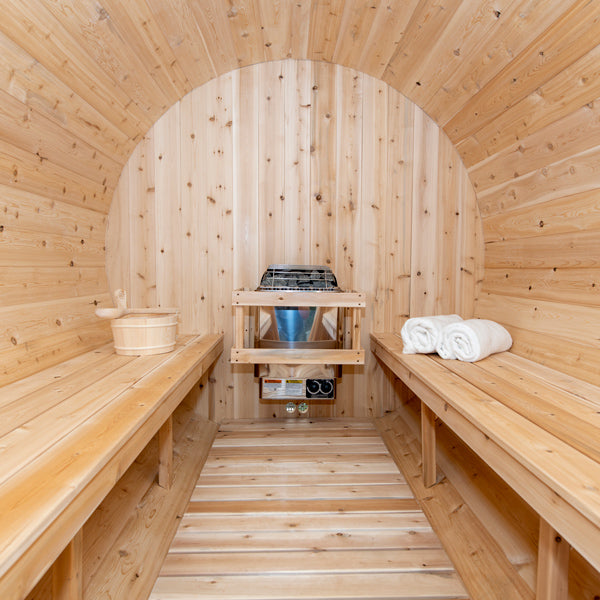

• Extra-Wide 20-Inch Benches: Ergonomically designed 20" wide cedar benches provide generous space to sit comfortably or stretch out across the room.

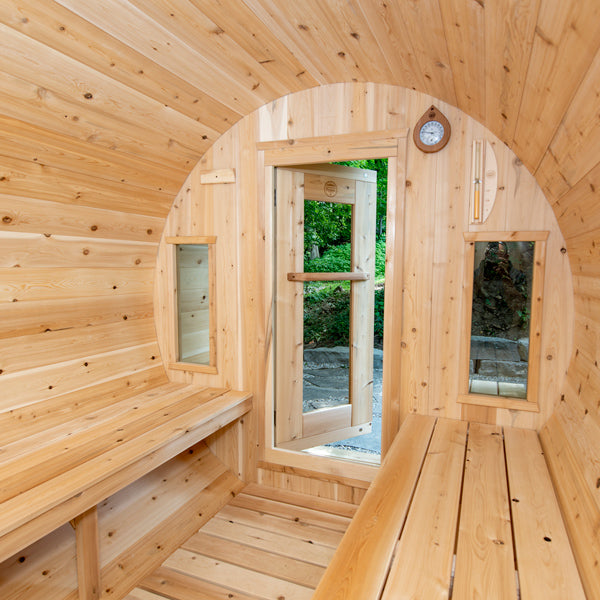

• Bronze Tempered Glazing: 5 mm heavy bronze tempered single-pane glass on doors and windows provides thermal insulation, subtle privacy, and natural daylighting.

• Dual Heating Compatibility: Supports high-output 7.5 kW electric sauna heaters as well as heavy-duty wood-burning stoves (size 14–16).

• 5-Year Craftsmanship Guarantee: Backed by Dundalk Leisurecraft’s 5-year limited manufacturer warranty against craftsmanship and structural defects.

Product Drawing Imperial PDF

Product Drawing Metric PDF

Assembly Instructions PDF

Assembly Guidelines

• Pre-Fabricated Kit Assembly: Designed with precision-milled tongue-and-groove beveled staves, pre-assembled front and back wall circular panels, heavy cedar support cradles, and pre-hung bronze tempered glass door assemblies.

• Crew & Tools Required: Requires 2 capable adults. Standard tools needed include a cordless drill, level, rubber mallet, adjustable 3/4-inch wrench (for compression bands), and a stepladder.

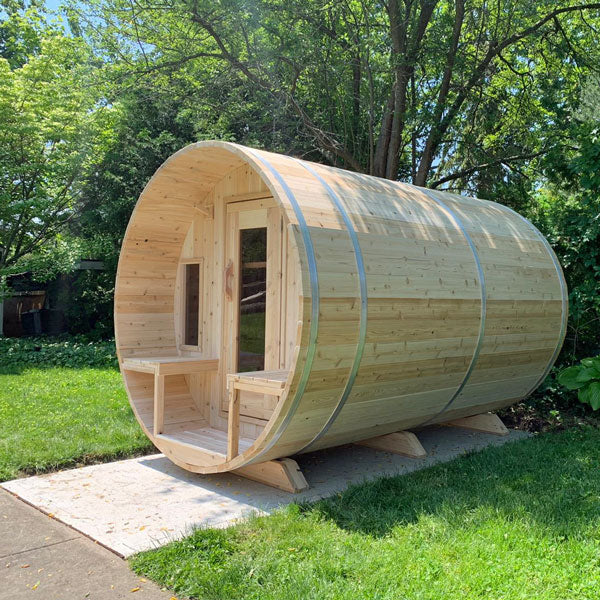

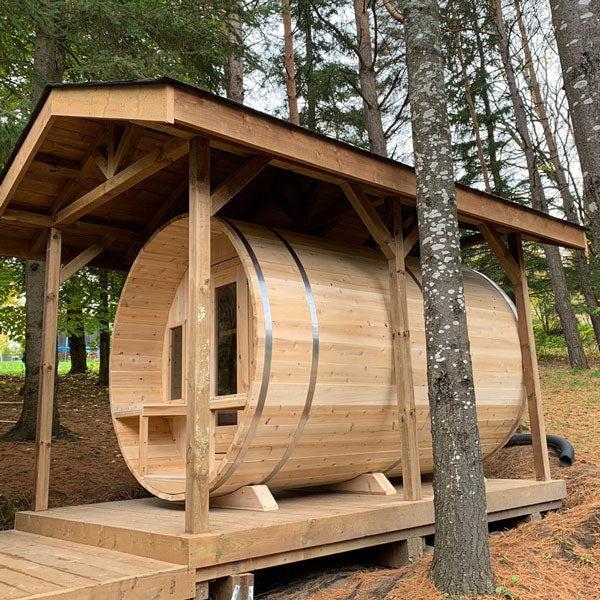

• Base Foundation Requirements: Must be positioned on a firm, flat, level foundation capable of supporting heavy static weight (poured concrete slab, heavy reinforced timber deck, or compacted patio pavers). Solid cedar support cradles elevate the staves to keep water draining freely away from the base.

Freight Delivery & Packaging

• Protective Crate Packaging: Ships securely packaged inside a heavy-duty, weather-resistant timber shipping crate.

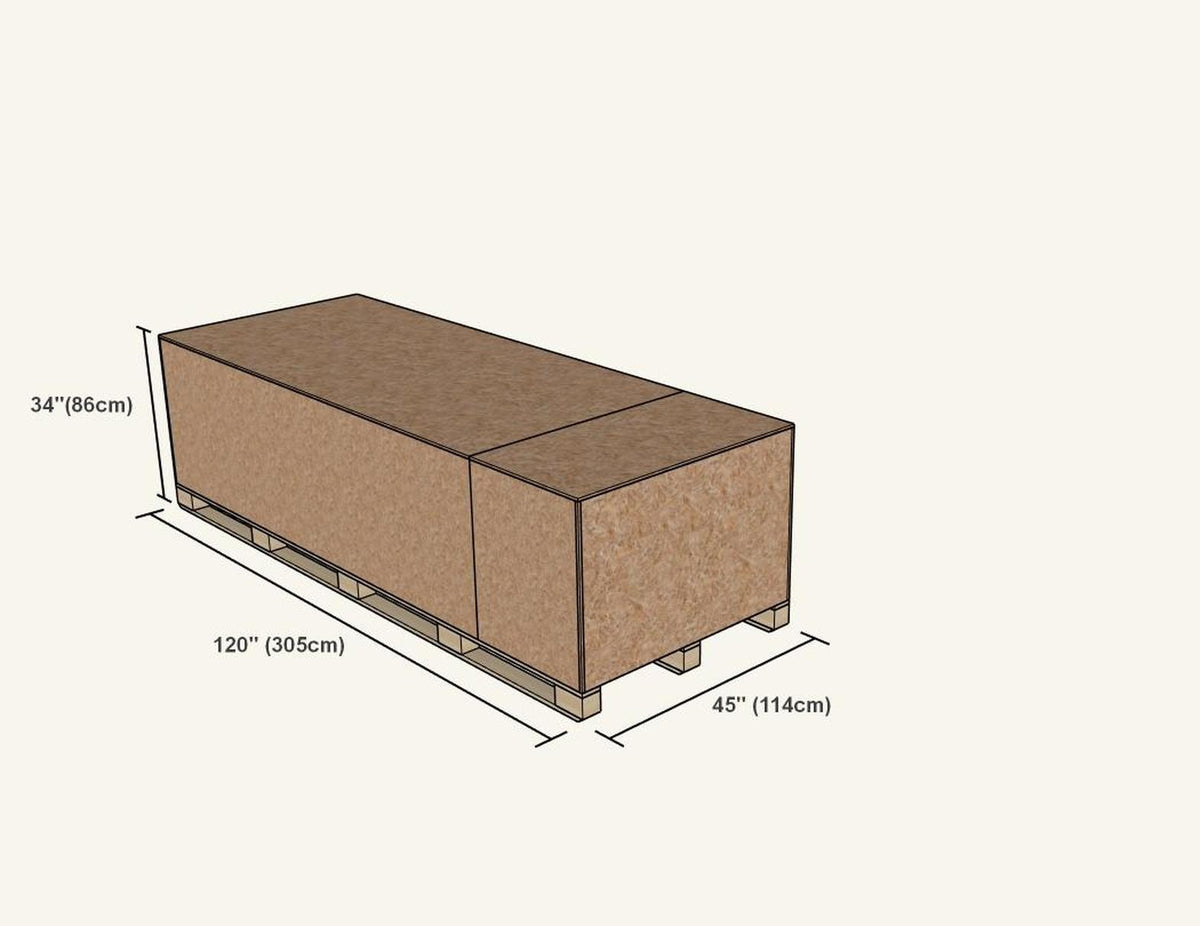

  • Crate Dimensions: 120" L x 45" W x 34" H (305 cm x 114 cm x 86 cm)

  • Packaged Crate Weight: 1,300 lbs (590 kg) (packaged weight varies depending on selected heater options and stones).

• Freight Carrier & Liftgate Requirements: Because this shipping crate measures 120 inches (10 feet) in length, standard commercial freight carrier liftgates (maximum 84 inches) cannot accommodate or offload it. Delivery is strictly curbside freight via tractor-trailer. Offloading must be arranged by the customer via one of the following methods:

  1. An on-site forklift, skid steer, or tractor equipped with extended fork attachments lifting from the end of the crate.

  2. A local flatbed tow-truck service hired to transfer the crate from the regional freight terminal directly to your property.

  3. De-crating the individual bundles and pieces directly from the truck bed by hand with an on-site crew within the delivery appointment window.

• Delivery Appointments & Inspection: The regional terminal will call prior to delivery to schedule an appointment window. Inspect all crate surfaces thoroughly before signing the Bill of Lading (BOL). If puncture marks or external carton damage are visible, write "Crate arrived damaged – Possible Hidden Damage" on the driver’s receipt and photograph the crate before opening.

Before Each Use & Daily Routine

• Pre-Session Check: Confirm air intake and outlet vents remain completely unobstructed. Verify that heater stones are positioned correctly without excessive settling, and inspect the heater area/firebox to make sure no personal items, towels, or combustible materials are near the heater.

• Towel Usage: Always place a towel over the cedar benches during sessions to absorb body perspiration and protect the raw wood grain.

• After Each Session: Prop the sauna door open to allow fresh air circulation and vent out residual moisture. Wipe down benches, backrests, and high-contact areas with a clean, dry towel. Remove wet towels and clothes, and never leave standing water inside the cabin.

Regular Cleaning & Cedar Care

• Periodic Wash: Clean the interior periodically based on usage using warm water and a mild soap with a soft cloth or non-abrasive brush; wipe away soap residue and allow the room to dry fully with the door open. Vacuum or sweep beneath the benches regularly to clear dust, hair, and debris.

• Light Sanding: Lightly sand stained or rough cedar surfaces with fine-grit sandpaper, always sanding parallel to the wood grain.

• Interior Wood Finish: Interior cedar is left natural and untreated. Never apply paint, varnish, or standard exterior stains to interior sauna surfaces. If wood protection is desired, use only non-toxic oils specially approved for sauna interiors (such as Livos Saunaoil).

• Exterior Cedar Care & Weathering: Exterior cedar can be left untreated to weather gracefully into a natural silver-gray patina without sacrificing durability, or treated with a high-quality penetrating exterior wood finish (such as Livos exterior wood finish) applied to clean, dry wood to maintain its original warm cedar tone.

• What to Avoid: Do not use bleach, chlorine, abrasive cleaning pads, or pressure washers on cedar wood.

Compression Bands & Seasonal Care

• Aluminum Band Maintenance: Cedar naturally expands with humidity and contracts during dry conditions. Check the marine aluminum compression bands after the first month and periodically thereafter. Tighten loose bands using a 3/4-inch wrench so they remain secure without over-tightening, allowing the cedar staves to expand naturally against the bands.

• Spring & Fall Checks: Inspect exterior cedar, roofing, doors, hinges, handles, vents, and floor drainage channels; lightly sand any rough spots and reapply exterior finish if desired.

• Winter Care: Engineered for year-round outdoor use, including harsh Canadian winters. Remove heavy snow accumulation from the roof curve, keep the entrance clear of snow and ice, keep air vents unblocked, and never use sharp metal tools to chip ice from cedar staves.

• Eastern White Cedar Framing: Handcrafted exclusively from sustainably harvested Grade-A Eastern White Cedar sourced from certified mills in Ontario and British Columbia. The tight-knot timber offers high thermal resistance and natural immunity to rot, decay, and insect attack without chemical pressure treatments.

• Solid Single-Stave Bevel Profiles: Precision-milled full-length staves fit together seamlessly without tenon joints or end seams along the body, providing an airtight thermal envelope and superior structural strength.

• T6061 Marine Aluminum Bands: Structural compression bands are manufactured in Canada from heavy-gauge T6061 marine-grade aluminum, delivering high tensile strength and complete rust resistance against outdoor moisture and road salt.

• Architectural Safety Glass: Door and window panels are crafted from 5 mm bronze tempered single-pane safety glass, combining thermal retention, impact durability, and softened interior lighting.

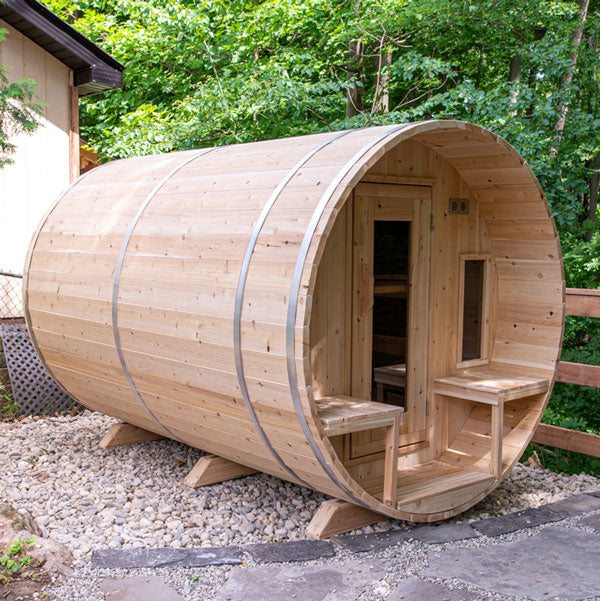

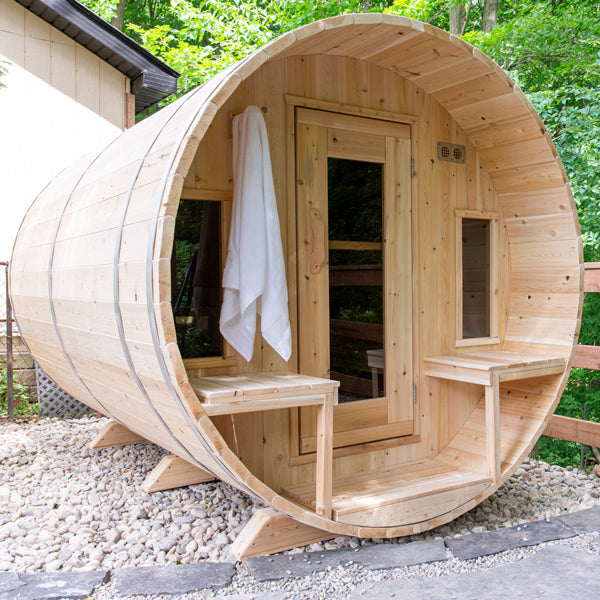

• Solid Cedar Base Cradles: Heavy, solid cedar support cradles elevate the barrel off the ground, ensuring positive under-body airflow and protecting staves from moisture pooling.

The Tranquility Barrel Sauna features an expansive 297 cu. ft. interior room volume, pairing with 7.5 kW electric sauna heaters or high-capacity wood-burning stoves (size 14–16).

Electric Heaters (7.5 kW Recommended)

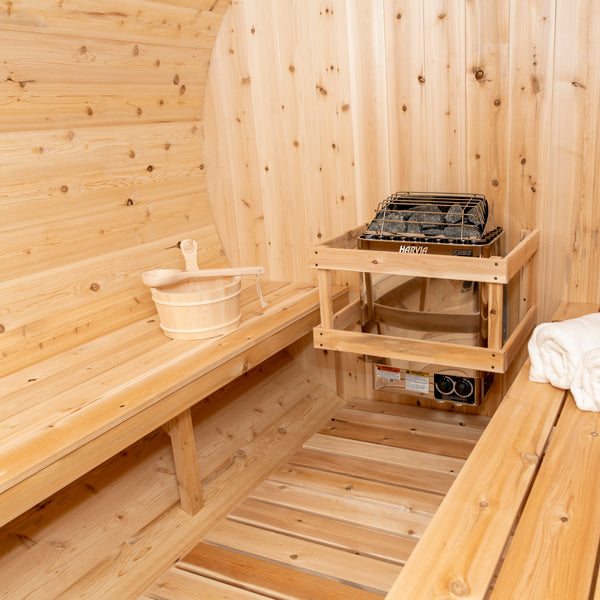

• Harvia KIP Electric (8 kW): Traditional wall-mounted Finnish sauna heater with built-in control knobs at the base, rapid-warming elements, and a 44 lb rock compartment for classic löyly steam.

• Homecraft Revive Electric (7.5 kW / 9 kW): Heavy-duty Canadian stainless steel rock tower housing 200 lbs of stones for continuous radiant warmth and rich steam cycles. Available with smart digital or Wi-Fi mobile controls.

• Homecraft Revive Slim (7.5 kW): Space-efficient floor-standing vertical tower heater with a 100 lb rock capacity, designed to preserve walkway clearance inside the barrel.

• Homecraft Apex (7.5 kW): Robust floor-standing open rock tower fabricated from high-grade stainless steel with a 130 lb stone capacity, delivering fast convective warming throughout the barrel.

• HUUM DROP (7.5 kW): Wall-mounted, organic water-drop design holding 120 lbs of rounded olivine stones, managed via the HUUM UKU digital or Wi-Fi mobile smart controller.

• HUUM HIVE Mini (7.5 kW / 9 kW): Free-standing sculptural stone tower holding up to 330 lbs of natural stones for exceptional heat retention and soft, prolonged steam. Paired with the UKU controller.

Wood-Burning & Pellet Stoves

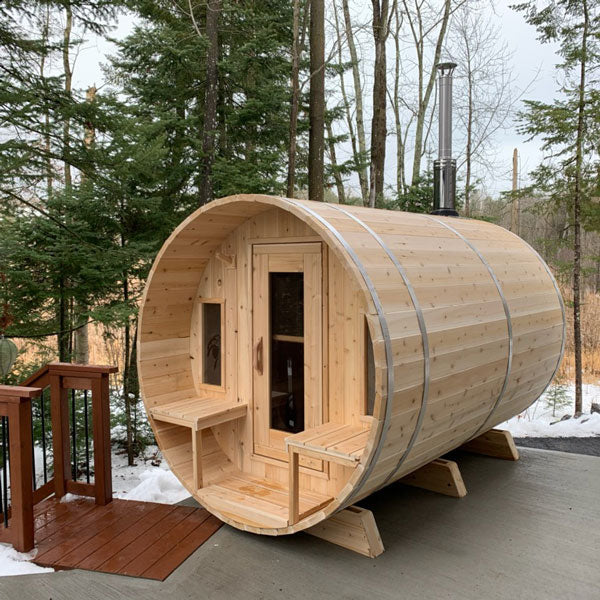

• Leisurecraft TimberGlow 14: Canadian-crafted wood stove featuring a 3/16" thick steel firebox accommodating 16" split logs. Holds 200 lbs of rocks and features a versatile 4.5" chimney outlet (top or rear exit) and glass viewing window.

• Narvi Kuru 14 / 20: Modern Finnish wood-burning stove with a durable matte black steel housing, cast-iron glass viewing door, and deep stone capacity for traditional soft löyly.

• Narvi NC 16 / 20 Black: High-efficiency Finnish wood stove featuring an eco-friendly combustion firebox, large stone basket, and rapid thermal cycling.

• Pellum P47 Pellet Heater: Automated wood-pellet sauna stove with a 22 lb hopper capacity, providing up to 4.5 hours of clean, steady automated heat per burn without manual firewood handling.

(Note: All 240V electric heaters require dedicated electrical hookup installed by a licensed electrician to maintain equipment safety and warranty protection. Wood-burning stoves require a certified chimney kit and adherence to specified clearance zones.)
